Brute Blast Freezer

bbfhero4
vandalres

Industrial Performance. Plug-and-Play Simplicity.

Industrial Performance. Plug-and-Play Simplicity.

A World-First Plug-and-Play Solution for High-Capacity Rapid Freezing

TheBRUTERange of Blast Freezers brings industrial-scale rapid freezing into a completely self-contained, factory-built plug-and-play format. Designed for high-capacity food processing and storage applications,BRUTEeliminates the complexity, infrastructure and installation costs normally associated with conventional blast freezing rooms.

Available in 200, 400,700, 900 and 1,200 kg batch capacities,BRUTEfreezers can also be configured as shock freezers by modifying the loading pattern, providing greater flexibility for different products and freezing requirements.

BUILT FOR INDUSTRIAL PERFORMANCE

    • Factory-Built & Plug-and-Play — Completely assembled and ready for operation.
    • Completely Self-Contained — No separate refrigeration room or complex site installation required.
    • Portable & Relocatable — Heavy-duty wheels allow the freezer to be moved whenever your production layout changes, with virtually zero relocation cost.
    • Integrated Folding Ramp — Built-in ramp makes trolley loading and unloading fast and effortless.
    • Custom Trolley System — Trolleys can be supplied to suit your specific tray dimensions and loading configuration.
    • 100% Food-Grade SUS304 Construction — Entire freezer interior is manufactured in hygienic stainless steel.
    • SUS304 Fans & Fan Grills — A first-in-class feature, providing exceptional hygiene and allowing the entire freezing chamber to be pressure-jet washable.
    • Active Heat Rejection — Engineered for efficient heat removal and reliable industrial operation.
    • Vapor-Injection Scroll Compressor — High-efficiency refrigeration technology designed to deliver superior performance at low temperatures.
    • Intelligent Temperature Control — Precise control of freezing conditions for consistent product quality.
    • Smart Door-Fan Control — Optimises air circulation while reducing unnecessary energy consumption.
    • Dual LED Interior Lighting — Excellent visibility throughout the freezing chamber.
    • Condenser Cleaning Alarm — Alerts operators when condenser cleaning is required, helping maintain refrigeration efficiency.
    • Plain-English Fault Diagnostics — Makes troubleshooting faster and easier for operators and service personnel.
    • Easy Service Access — Designed for quick maintenance and minimal downtime.
    • Industrial-Grade Electrical Components — Built for demanding commercial and industrial environments.

THEBRUTEADVANTAGE

High Capacity. Rapid Freezing. Zero Installation Complexity.

BRUTEcombines the performance of an industrial blast freezer with the simplicity and mobility of a standalone machine — delivering a practical, hygienic and highly flexible freezing solution for modern food-processing operations.

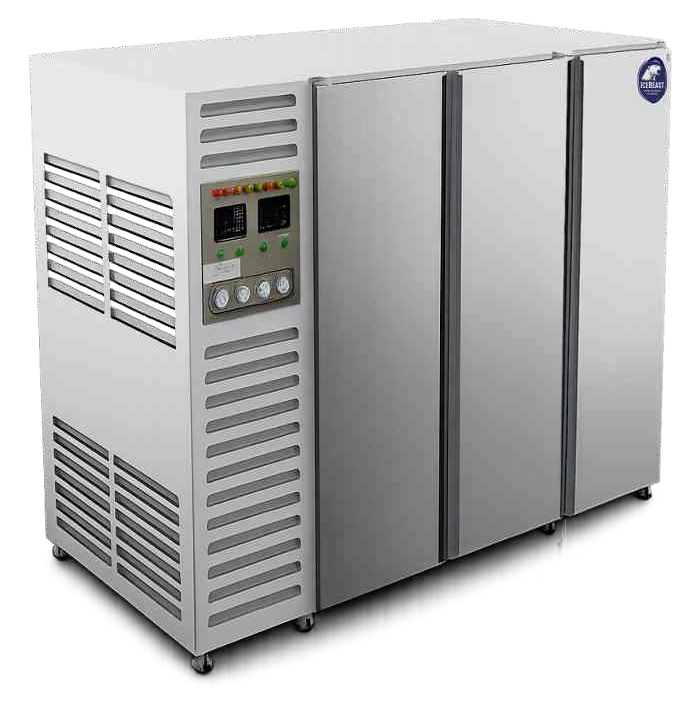

BBF700

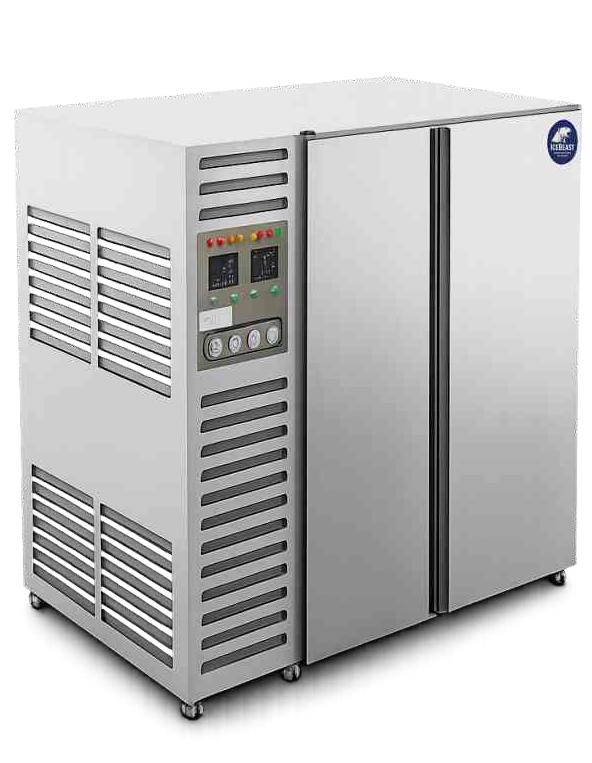

BBF400

BBF700

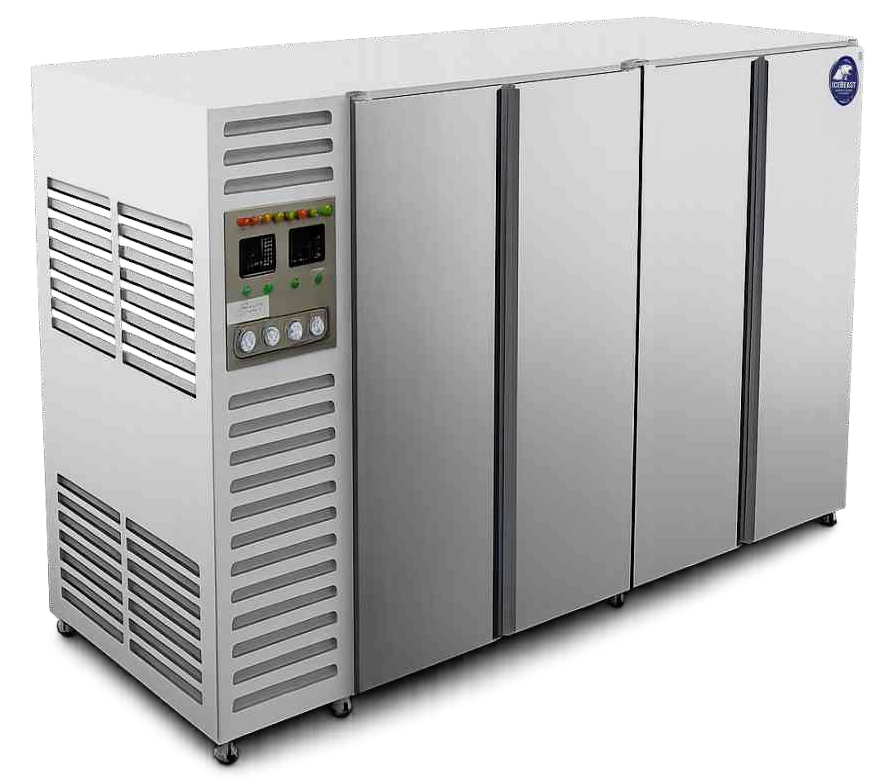

BBF900/1200

BRUTEBLAST FREEZER TECH SPECS

Sl No Description BBF200 BBF400 BBF700 BBF900 BBF1200
1 External Dimensions
(W × D × H) mm		 1460 × 1548 × 2330
(W)    (D)    (H) 		2265 × 1548 × 2330
(W)    (D)    (H) 		3070 × 1548 × 2330
(W)    (D)    (H) 		3875 × 1548 × 2330
(W)    (D)    (H)
2 Freezing Capacity +40 to -18,
200 kgs in 360 min		 +40 to -18,
400 kgs in 360 min		 +40 to -18,
700 kgs in 360 min		 +40 to -18,
900 kgs in 360 min		 +40 to -18,
900 kgs in 240 min
3 Number of doors 1 Nos. – Stay open at 90° and self-close at less than 90° 2 Nos. – Stay open at 90° and self-close at less than 90° 3 Nos. – Stay open at 90° and self-close at less than 90° 4 Nos. – Stay open at 90° and self-close at less than 90°
4 Material of construction SUS304
5 EN Tray Size
600 × 400		 20 mm depth, 88 trays in 44 levels
40 mm depth, 60 trays in 30 levels
65 mm depth, 44 trays in 22 levels
6 Maximum Product Load 250 kg per Trolley (Excluding trolley weight)
7 Power Supply 3 Phase 380–415 V, AC, 50 Hz
8 Defrost Drain Water Flexible hose provided / Optional zero water discharge evaporation tray.
9 Rated Power 6500 W 12500 W 18000 W 25000 W 33000 W
10 Machine Mobility Heavy Duty industrial leveling casters with locking – 8 No's Heavy Duty industrial leveling casters with locking – 6 No's
11 Maximum Operating Ambient Temp 43°C
12 Cabin Temp Range -10°C to -40°C
13 Refrigerant Gas
(Type/Charge)		 R404a
