Smart Modular Portable Cold Rooms
Our Smart Modular Portable Cold Rooms are engineered to deliver reliable, energy-efficient, and cost-effective cold storage solutions for businesses across industries. Designed with advanced insulation and dual-compressor technology, these portable cold rooms consume up to one-third the electricity of conventional cold rooms while costing nearly half as much to install. Their modular construction allows quick installation and easy relocation, making them an ideal choice for food processing units, dairy, pharmaceuticals, floriculture, agriculture, hospitality, and commercial storage applications.
Built to operate on a standard single-phase 6A plug and socket, the system eliminates the need for complex electrical infrastructure. The temperature can be conveniently adjusted anywhere between -22°C and +5°C, enabling storage of frozen, chilled, or temperature-sensitive products within the same unit. The dual-compressor system, combined with an efficient heat exhaust mechanism, ensures consistent cooling performance even in high ambient conditions.
Safety and durability are at the core of the design. Features such as the patented Cold Stop Door Technology, secure door safety lock, indoor-mounted machinery, advanced surge and lightning protection, and bright LED temperature display provide dependable operation and user convenience. The cold room also includes a condenser cleaning alarm for timely maintenance and heavy-duty industrial levelling casters with locking mechanisms for effortless mobility and stable positioning.
To ensure uninterrupted operation during power outages, the unit requires only a 5 kVA generator for backup power, significantly reducing operational costs compared to conventional cold storage systems. Combining portability, energy efficiency, and robust performance, our Smart Modular Portable Cold Rooms offer a modern refrigeration solution that is built for reliability, flexibility, and long-term savings.

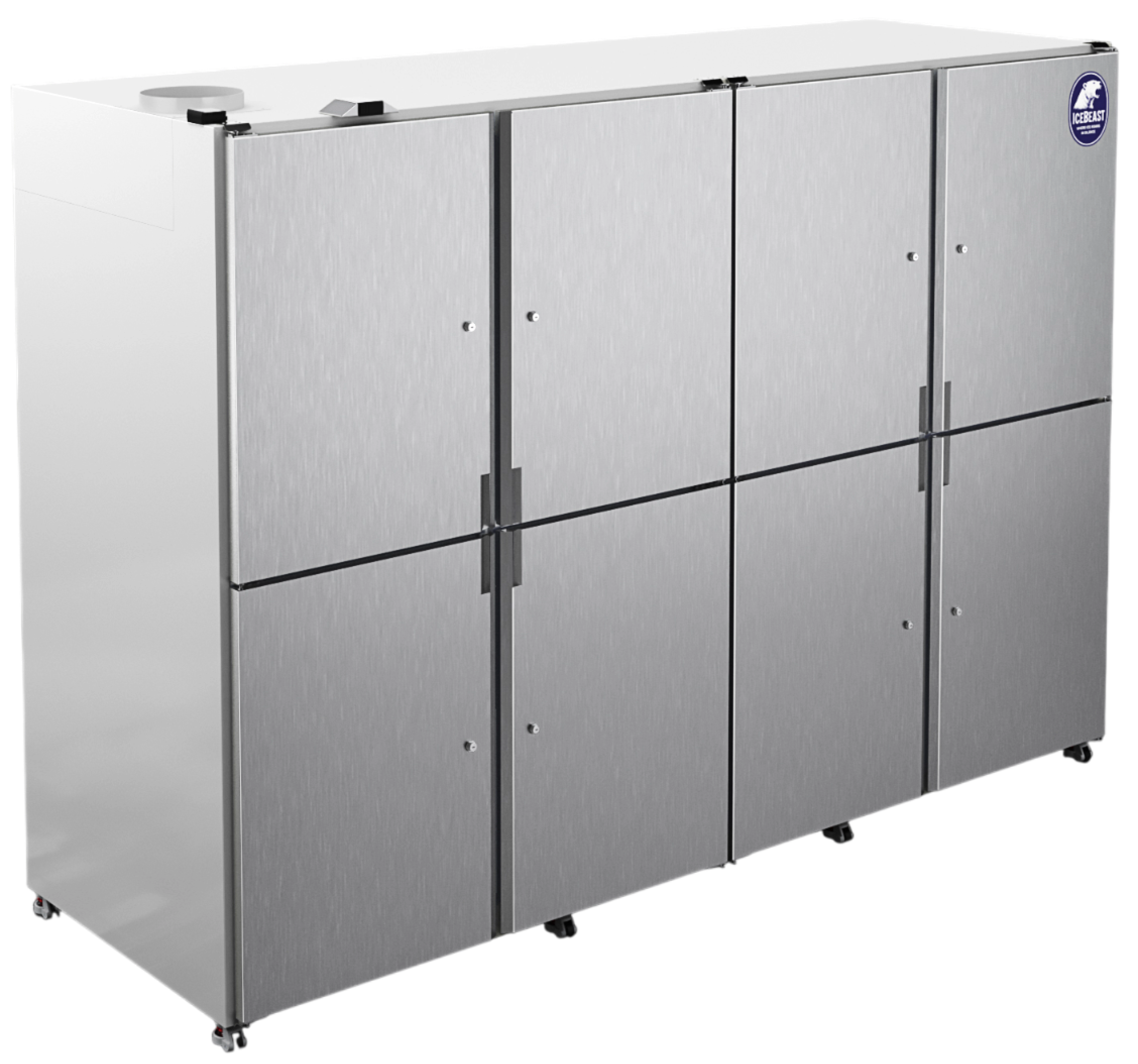

VLF6000

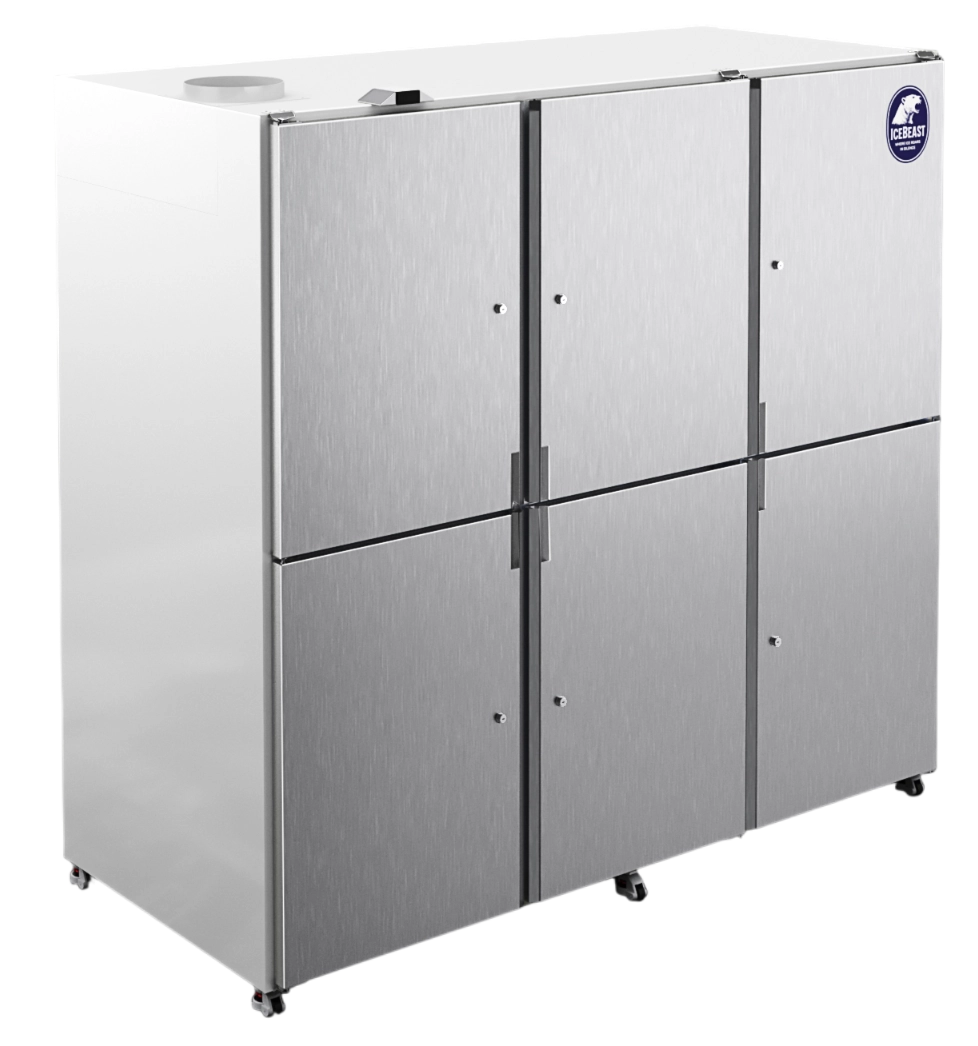

VLF4500

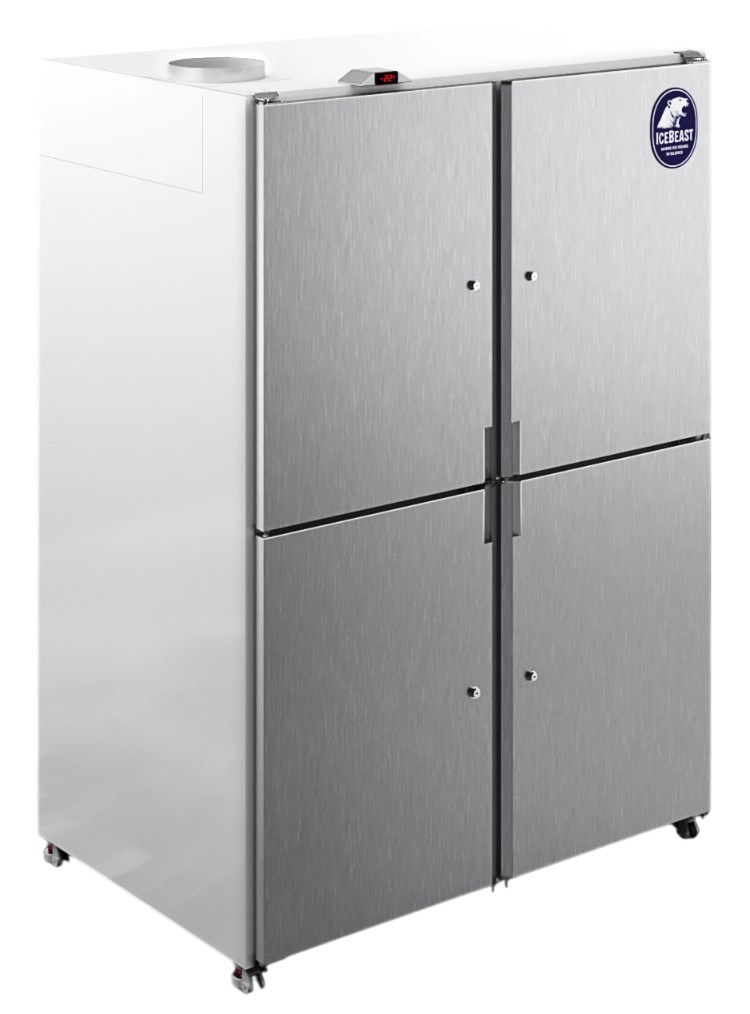

VLF3000
VERTICAL LARGE FREEZER TECH SPECS
| Sl No | Description | VLF6000 | VLF4500 | VLF3000 |
|---|---|---|---|---|
| 1 | External Dimensions (WxDxH) mm | 3250 × 1118 × 2330 (W) (D) (H) |
2445 × 1118 × 2330 (W) (D) (H) |
1640 × 1118 × 2330 (W) (D) (H) |
| 2 | Cold Cabin Volume (L) | 6000 L | 4500 L | 3000 L |
| 3 | Number of Doors | 8 | 6 | 4 |
| 4 | MOC – Body & Door | PPGI / SUS304 (Optional) | ||
| 5 | Number of Shelves | 8 | 6 | 4 |
| 6 | Power Supply | Single Phase 190–254V, AC, 50Hz | ||
| 7 | Number of Compressors | 2 | 2 | 1 |
| 8 | Connected Load | 1000 W | 750 W | 500 W |
| 9 | Machine Mobility | Heavy Duty Industrial Levelling Casters with Locking – 8 No's | Heavy Duty Industrial Levelling Casters with Locking – 6 No's | Heavy Duty Industrial Levelling Casters with Locking – 4 No's |
| 10 | Maximum Operating Ambient Temperature | 43°C | ||
| 11 | Cabin Temperature Range | -22°C to +5°C | ||
| 12 | Temperature Display | Bright Red Colour LED Display | ||
| 13 | Safety Lock | The door lock has a unique key, it cannot be opened with any other key. | ||
